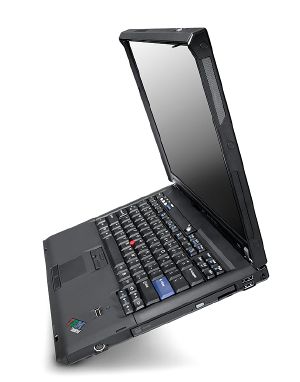

ThinkPad R60

This page gives an overview of all ThinkPad R60 related topics.

Standard Features

• One of the following processors:
  • Intel Celeron M 1.4, 1.6 GHz CPU
  • Intel Core Duo (Yonah) 1.66, 1.83, 2.0, 2.2, 2.33 GHz CPU
  • Intel Core 2 Duo (Merom) 1.83 CPU
  • Intel Core Solo (Yonah) 1.66 GHz CPU
• One of the following graphics adapters:
  • Intel Graphics Media Accelerator 950 - only for 1024x768 and 1400x1050 displays
  • ATI Mobility Radeon X1300 (64 MB)
  • ATI Mobility Radeon X1400 (128 MB)
• One of the following displays:
  • 14.1" TFT display with 1024x768 resolution
  • 14.1" TFT display with 1400x1050 resolution
  • 15.0" TFT display with 1024x768 resolution
  • 15.0" TFT display with 1400x1050 resolution
  • 15.0" TFT display with 1600x1200 resolution
• 512 MB or 1 GB PC2-5300 memory standard upgradable to 4 GB¹
• 40, 60, 80, 100 or 120 GB SATA HDD
• One of the following Audio Controllers
  • AD1981HD HD Audio 1.0 controller
  • Intel audio controller Intel_82801G_HDA (in 9456-6FG Version)
• One of the following Ethernet controllers:
  • Intel Gigabit Ethernet Controller
  • Broadcom Gigabit Ethernet Controller
• UltraBay Enhanced with the following:
  • CD-ROM drive
  • CD-RW/DVD-ROM Combo drive
  • DVD±RW/DVD-RAM drive
• MiniPCI Express slot 1 with one of the following:
  • None (empty)
  • Intel PRO/Wireless 3945ABG Mini-PCI Express Adapter
  • IBM 11a/b/g Wireless LAN Mini PCI Adapter
  • ThinkPad 11a/b/g Wireless LAN Mini Express Adapter
  • Bluetooth Version 2.0 + EDR
• MiniPCI Express slot 2 with one of the following:
  • None (empty)
• CardBus slot (Type 2)
• ExpressCard/53 slot
• IBM Embedded Security Subsystem 2.0
• IBM Active Protection System
• Integrated Fingerprint Reader on select models
• Bluetooth
• UltraNav (TrackPoint / Touchpad combo)
• Thinkpad R60 battery
